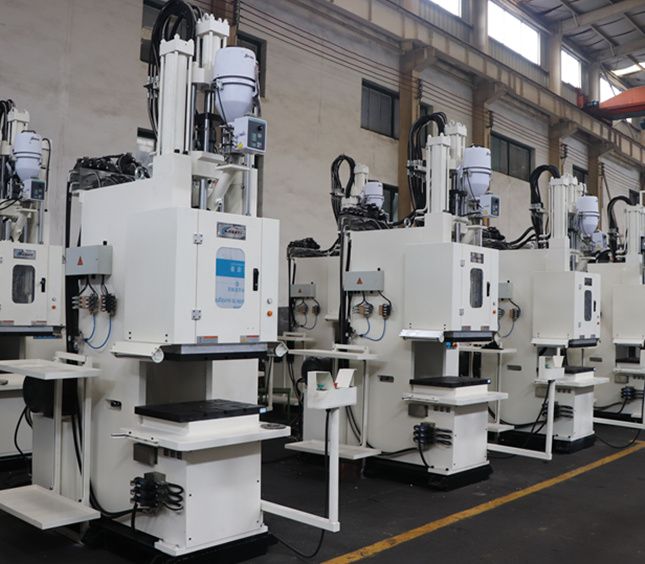

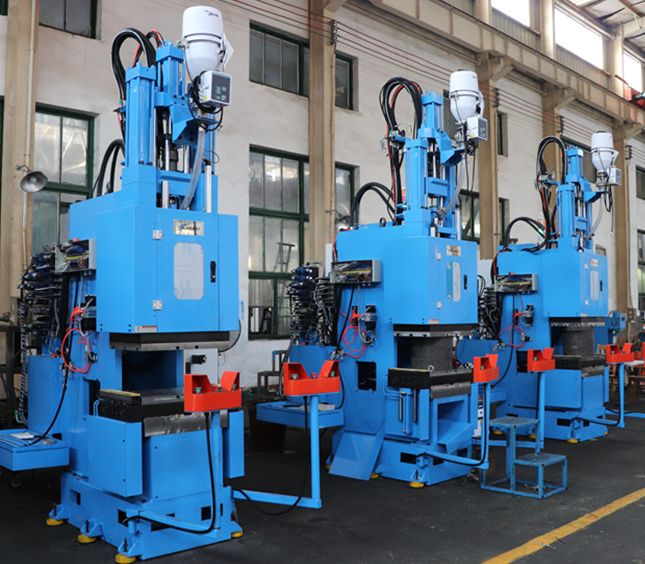

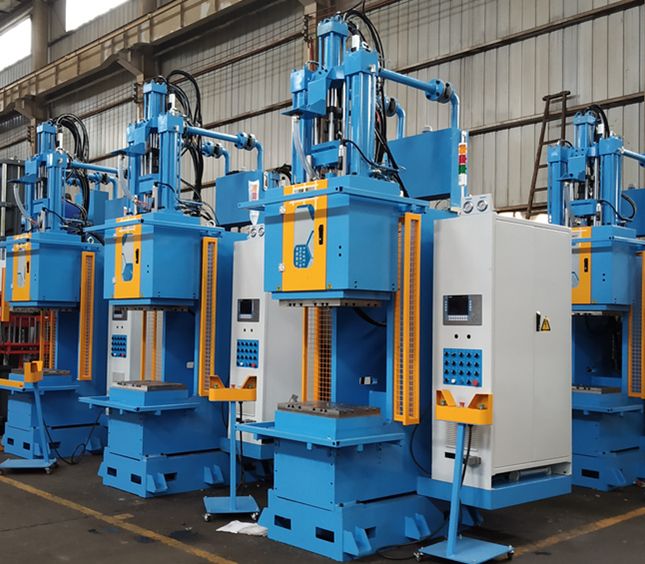

C frame injection press

What is the difference of EPDM injection press and TP Injection press?

• TPV/TPE C frame press cooperates with hot runner molds, hot runner system needs to be heated over 200 degrees, and EPDM C frame press cooperates with cold runner molds, cold rubber system should be cooled down to make the rubber temperature inside stay in 60 to 80 degree, not cured;


• Hot runner mold should be cooled down during molding, temperature control unit for hot runner molds is necessary; cold runner mold should be heated during molding;


• Cascade control is only for TPV/TPE press, if without this control, the mold on the press have to link with an extra hot runner valve gate control panel;


• TP C frame press material feeding should cooperates with air dryer, hopper, and auto-loader, because the thermoplastic rubber elastomer granules with high water imbibition should be dried at about 80 degrees for 4 hours in advance, otherwise the final parts are easier to get surface defects and injection weight is not control.

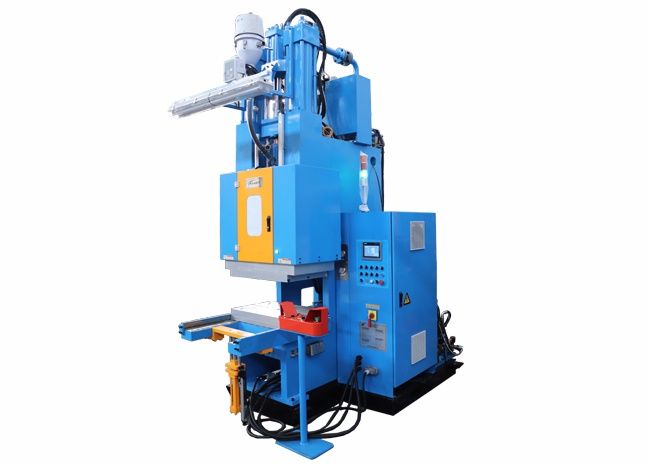

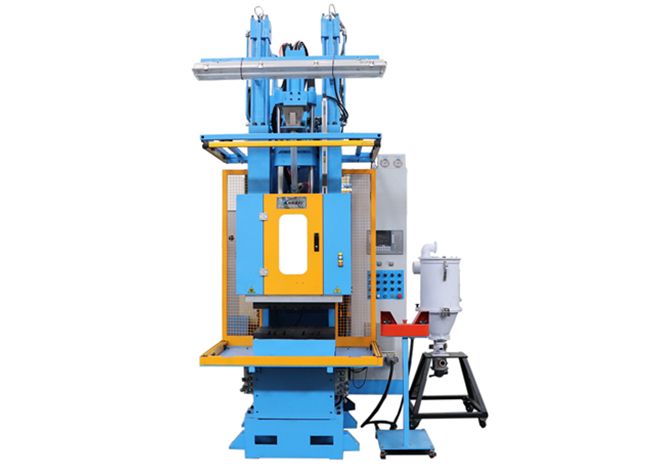

TPV C frame injection press features

Sturdy machine structure

• Finite element analysis ensures rigidity of c frame structure
• Platens parallelism defects less than 0.06mm
• European oil seals and oil couplings, well-knit oil manifolds & pipe connnections ensure no oil leakage

Swift dynamic response

• Most advanced Siemens control system with high speed calculation modules promote swift dynamic response

High precision

• Germany top brand injection transducer, Injection Injection volume tolerance ±0.5%, CPK >=1.67, temperature control on injection unit within 2°difference
• Platens temperature tolerance within ±2°,PID temperature calibration; Germany imported insulation plates prevents heat loss efficiently.

• Platens temperature tolerance within ±2°,PID temperature calibration; Germany imported insulation plates prevents heat loss efficiently.

High safety

• Low pressure mold clamping protection,Rexroth safety salves, full safey protection guards and sensors, CE certificates light barriers and components which conforms to CE standard rubber injection press

Saving energy

• Servo driven system applied for saving 20%-50% power, max 80% power can be saved in the cold climate

Convenient operation and service support

• Humanized operation interface, USB data load /download, multi passward management, remote wireless monitoring and maintenance.
