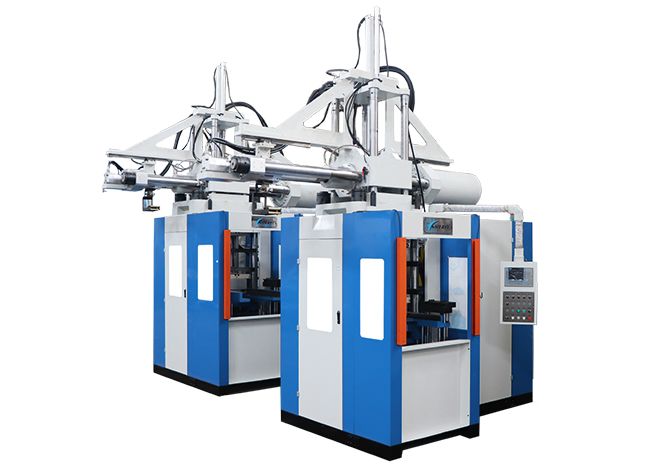

Rubber Injection Machine

FIFO Rubber Injection Machine

Rubber Injection Molding Machine with FIFO injection unit, High Injection Accuracy, Easy Material Cleaning, Lower Working Height

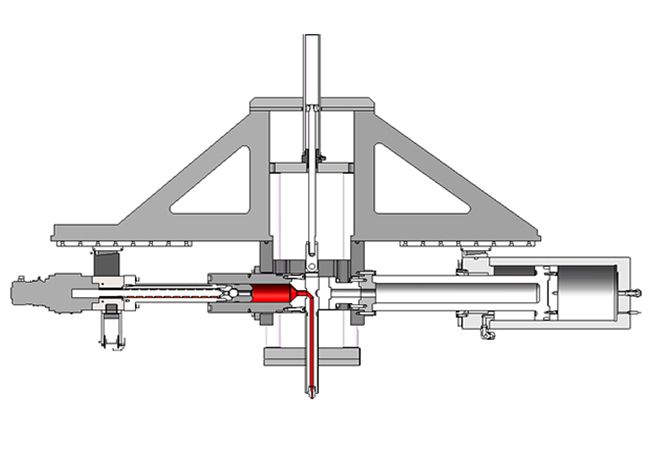

First in first out to promote injection accuracy

B&R controlling system, high precision, high stability

High energy saving ,advanced servo driven system can save 30-70% of power

Temperature controlling Tolerance less than ±2 ℃

Double dosing unit is optional, two color/material injection is availiable

Moveable clamping cylinder, reduce machine working height effiently

Get A Free Quote

Get The Brochure

Product Description

Rubber Injection Machine A Series, vertical rubber injection molding machine, four-column structure with retractable nozzle, LIFO injection, no material leakage or spill, easy maintenance structure, multi-phase injection speed & pressure setting adapt various molds production demand.

Item	HYZ-300BFD

Item	HYZ-300BFD
Clamping Force(KN)	3000
Injection Volume(CM³)	4000
Heating Platen Size(W*L/MM)	510×630
Space Btwn Platens(MM)	1090
Dimension Between Tiebar(MM)	790×660
Max.Clamping Stroke(MM)	810
Min.-Max. Mold Thickness (MM)	280-550
Machine Size(LWH)(M)	4000×2350×4540
Machine Weight (TON)	14

Features

FIFO Rubber Injection Machine

First in first out to promote injection accuracy
B&R controlling system, high precision, high stability
High energy saving ,advanced servo driven system can save 30-70% of power
Temperature controlling Tolerance less than ±2 ℃
Double dosing unit is optional, two color/material injection is availiable
Moveable clamping cylinder, reduce machine working height effiently

Features

FIFO Rubber Injection Machine

First in first out to promote injection accuracy
B&R controlling system, high precision, high stability
High energy saving ,advanced servo driven system can save 30-70% of power
Temperature controlling Tolerance less than ±2 ℃
Double dosing unit is optional, two color/material injection is availiable
Moveable clamping cylinder, reduce machine working height effiently

Features

FIFO Rubber Injection Machine

First in first out to promote injection accuracy
B&R controlling system, high precision, high stability
High energy saving ,advanced servo driven system can save 30-70% of power
Temperature controlling Tolerance less than ±2 ℃
Double dosing unit is optional, two color/material injection is availiable
Moveable clamping cylinder, reduce machine working height effiently
