Rubber Injection Machine

Vacuum Rubber Injection Machine

HUAYI vacuum rubber injection machine EV series, can equip with Germany Busch vacuum pump system, right located electrical control unit and power bank, free space for mold movements.

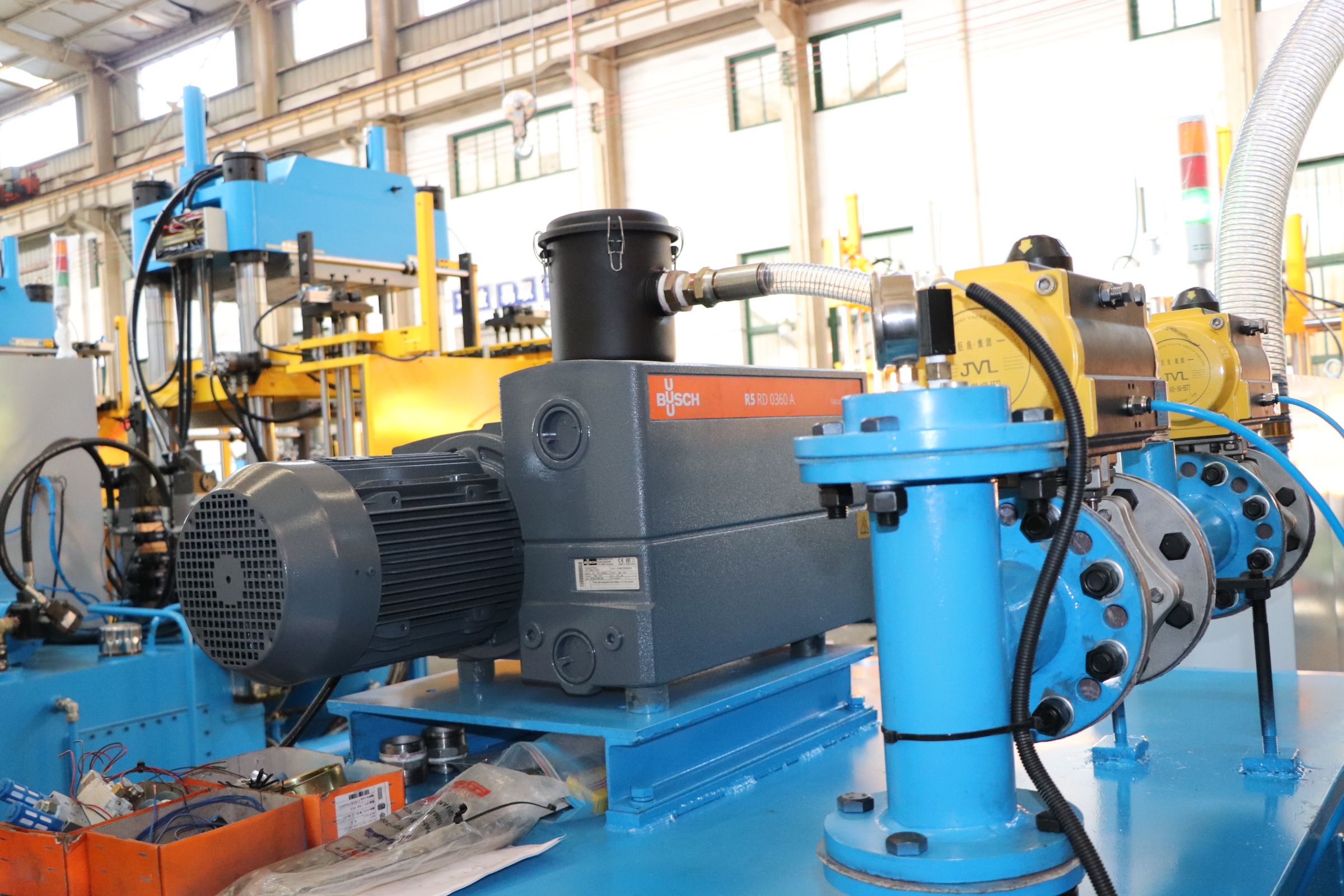

Rubber injection machine with Germany vacuum system;

Four-column vertical structure ensures machine durability;

Right located oil tank, electrical cabinet and control panel, more back space for mold movements

HTV silicone rubber material feeder is optional making silicone rubber insulators, arresters, fuse cutout,cable joints,bushings and other cable accessories

Multi phases injection pressure and speed adapts differerent rubber molds production;

Sturdy design of clamping unit for high stability and parallelism;

Siemens or B&R fast response electrical controlling;

PLC monitor entire production process, 300 sets of production recipes can save and USB data transmission conveniently

Platens temperature tolerance within ±2°,PID temperature calibration; Germany imported insulation plates prevents heat loss efficiently.

Multi demolding devices can be adopted

CE Standard Rubber Injection Machine option is available

Get A Free Quote

Get The Brochure

Product Description

vacuum rubber injection machine, huayi new rubber injection machine generation at 2019. 1. Compact design, lower working height; 2. Germany vacuum system ; 3. right located electrical cabinet and power pack; 4. More optional demoulding options: slide, double ejectors, clappers, core pullers...

Item		HYZ-200E	HYZ-300E	HYZ-400E	HYZ-500E	HYZ-580E	HYZ-600E

Item	HYZ-200E	HYZ-300E	HYZ-400E	HYZ-500E	HYZ-580E	HYZ-600E
Clamping Force(KN)	2000	3000	4000	5000	5800	6000
Injection Volume(CM³)	2000/2400	3000	3000/4000	3000/5000	5000/6000	5000/8000
Heating Platen Size(W*L/MM)	550*550	600*700	700*700	700*700	700*700	800*800
Space Btwn Platens(MM)	570	750	710	750	750	1000
Dimension Between Tiebar(MM)	650*360	710*510	860*490	770*550	930*560	1010*560
Max.Clamping Stroke(MM)	500	600	500	700	700	800
Min.Mold Thickness(MM)	80	160	220	60	60	210
Total Power (KW)	28	40	53	55	55	55
Machine Size (M)	3.51.63.9	3.824.6	4.22.74.8	4.22.74.9	4.32.84.9	4.32.85
Machine Weight(T)	8	12	14	17	25	44

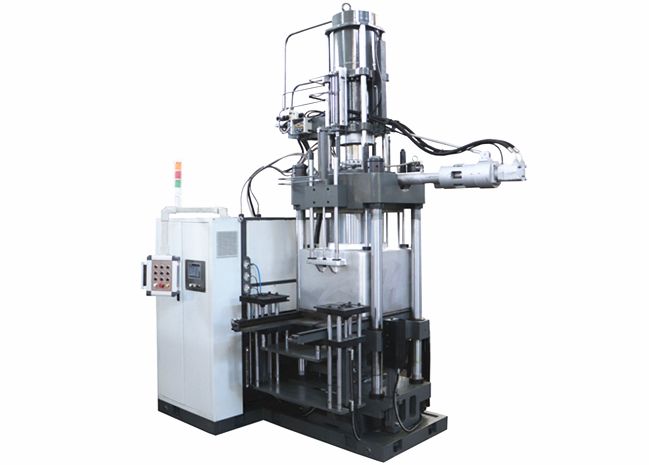

CE Standard Rubber Injection Machine

CE standard machine, CE safety rely, CE light curtains, Rexroth safety valves, low pressure mold protection, CE components, anti-burst hydraulic chains...

Four-column vertical structure ensures machine durability;
Right located oil tank, electrical cabinet and control panel, more back space for mold movements
HTV rubber material feeder is optional making cable joints,bushings and other cable accessories
Multi phases injection pressure and speed adapts multi molds production;
Sturdy design of clamping unit for high stability and parallelism;
Siemens or B&R fast response electrical controlling;
PLC monitor entire production process, 300 sets of production recipes can save and USB data transmission conveniently
Platens temperature tolerance within ±2°,PID temperature calibration; Germany imported insulation plates prevents heat loss efficiently.
Multi demolding devices can be adopted
CE Certification option is available
